Heavy-Duty Boerner Divider Tool

Description

The Boerner Heavy Duty Divider is the standard divider for all federal, state, and local grain inspection offices. It operates by placing samples in the hopper. Released by moving a slide gate in the hopper throat, product is evenly dispersed over a 38 pocket cone. After separation the grain evacuates through two chutes at the bottom of the hopper.

• Meets USDA-FGIS (GIPSA) specifications for official inspection

• Provides accurate splits of ±1% on a 1000g sample

• Made of rust resistant brass and copper

• Legs and supports made of painted steel.

• The 34 stands 31″ high with 3″ clearance under the spouts

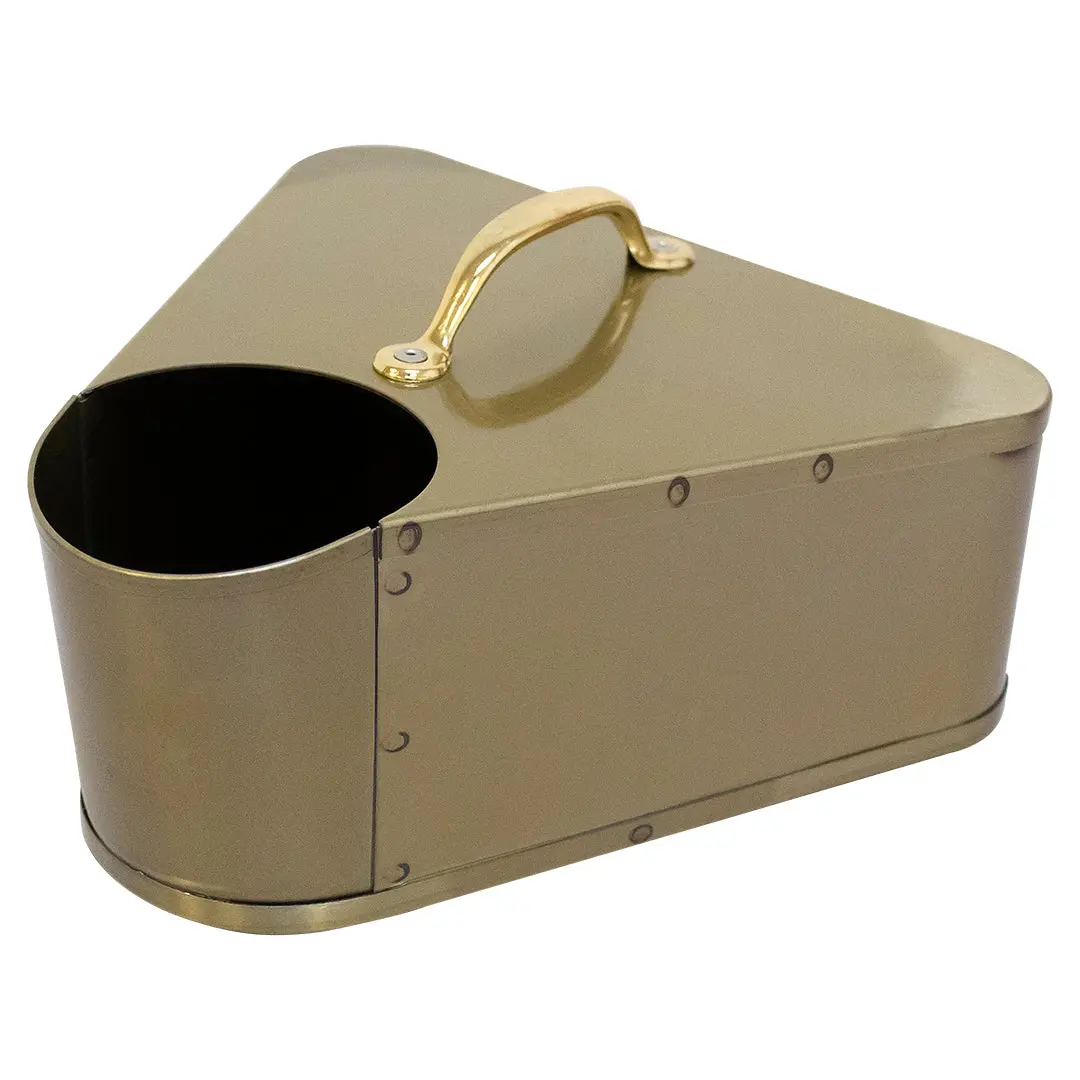

• Supplied with two brass pans with handles for easy sample transport

Net wt. 30 lbs, Ship wt. 34 lbs, Dims. 18″ L x 18″ W x 39″ H

34S Sound Abatement Kit Assembly Instructions

The 34S Sound Inhibitor reduces noise with a plastic collar and die-cuts of heavy gauge aluminum foil alloy sound dampening material.

• Reduces noise levels in lab by as much as 80%

• Meets USDA-AMS/FGIS specifications for official inspection

• 34SF102 (x3)

• 34SF103 (x3)

•  34SF104 (x3)

• 34SF105 (x3)

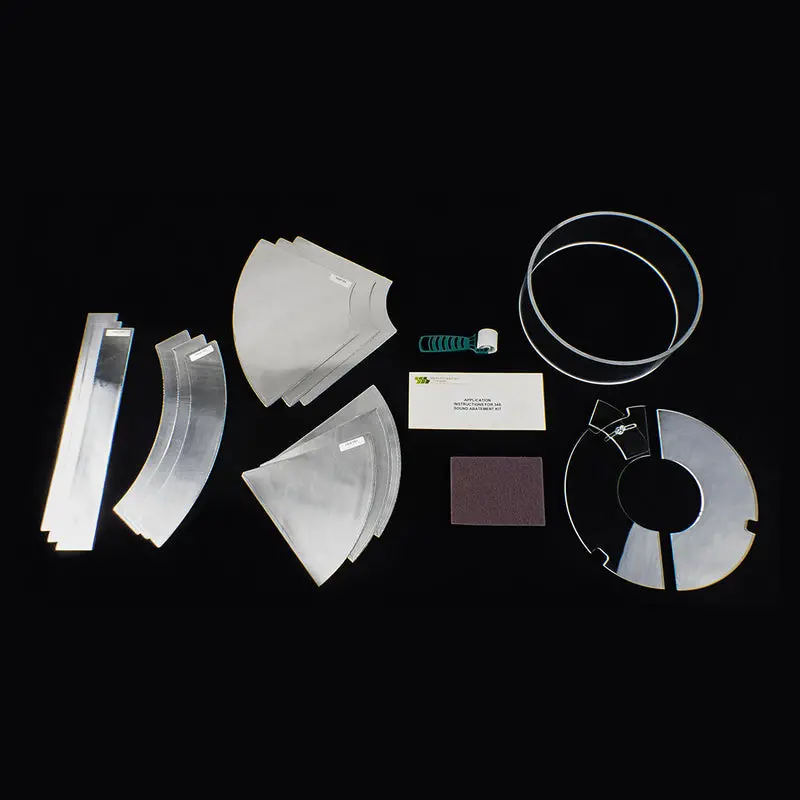

• Kit contains

  • 12″ x 1⁄4″ wall x 3.5″ long acrylic ring (1x)

  •  Acrylic cut piece with 2 notches (1x)

  •  2-Piece attached acrylic shapes with
    notches attached and already installed
    hardware (1x)

  •  Seam roller

  •  Scrubbing pad

• ship wt. 6 lbs, ship dims. 15″ L x 15″ W 6″ H
