Note: Domestic/Export crating must be selected with the items above.
D7440/B and D7440/C both utilize a 20 AMP AC plug. May require customer upgrade of outlet & breaker.
WATTS: @905 5-15P PLUG

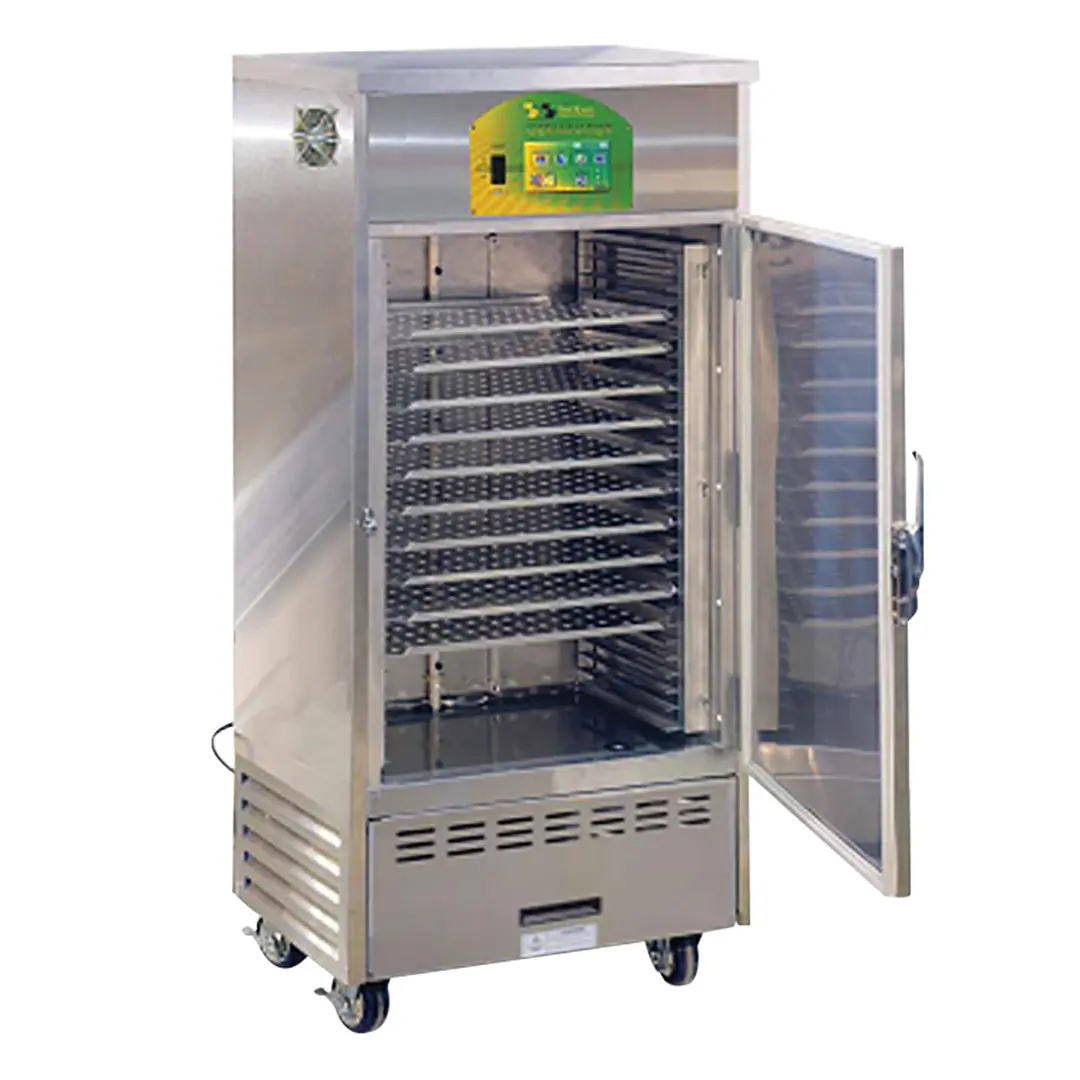

D7440 and S6920 are classic style Germinators and provide consistent
reproducible environmental conditions. The touchscreen allows user to control almost any combination of temperature, light intensity, humidity and time options, with greater accuracy than typical electromechanically controlled units.
Construction
Heavy duty welded tubular stainless steel base, 18 gauge 304 stainless exterior and interior, high density foam insulates the entire cabinet, non-conductive materials separate the interior chamber from the exterior, and the doors are fully gasket sealed. Aluminum trays lift out for easy cleaning. Recessed reservoir drain is easily accessible and a screened base prevents rodent infestation. Units are completely mobile on large 5″ heavy-duty casters.
Heat/Refrigeration Systems
Elements are totally enclosed for efficient heat transfer and operator safety. Uniform refrigeration is maintained through the use of a 1/3HP condensing unit. All refrigerant lines are copper and fully insulated. Temperature range: 0°C–55.6°C (32°–132°F), sensitivity ±0.5°C or better.
Air-Humidity Circulation
Unique forced air circulation design maintains an even, continuous, moist airflow throughout the cabinet. Perforated trays further enhance even humidity distribution to test samples.
Illumination
- Light is an on/off function with two white LED strips (~700 lumens each) full length rear mounted to ensure full light coverage throughout interior
- Total 1400 Lumens
- 6500°K wavelength (daylight equivalent)
- Interior highly reflective stainless steel surfaces for greater light spread
Interior Capacity
9.95 cu. ft. Model S6920, 23.5″ (D) x 22.5″ (W) x 32.5″ (H) (Chamber size)
19.9 cu. ft. Model D7740, 23.5″ (D) x 22.5″ (W) x 32.5″ (H) (Per Chamber)
Trays
Model D77440 includes 20 Perforated Aluminum Trays (10 per chamber) on 3″ spacing (7.62cm), can hold 40. Tray size measures 17″ x 19″.
Model S6920 includes 10 Perforated Aluminum Trays on 3″ spacing (7.62cm), can hold 20. Tray size measures 17″ x 19″.
(Additional trays can be ordered to increase capacity)
Additional Features
- SINGLE SET POINTS ON CONTROLS
- 1º C TEMPERATURE CONTROLLERS
- REMOVABLE TRAY RACKS
- RECESSED RESERVOIR DRAIN
- INDEPENDENT MODE SELECTION
- TOTAL AIR CIRCULATION
- RODENT RESISTANT DESIGN
