Precision Laboratory Grinder Model 3310

Description

Product Manual

The Laboratory Mill 3310 is designed for grinding samples of grains, pellets, meals, feeds, and forages. The ground sample can then be used for analyses such as NIR, Falling Number, Glutomatic, Kjeldahl, etc. The Laboratory Mill 3100 is a hammer type cyclone mill, built into a soundproof casing. An adjustable vacuum feed control regulates the feed rate of the sample into a metallic grinding chamber. A hardened steel hammer rotates at high speed forcing the sample through a stainless sieve. Standard sieve of 0.8 mm is used for Falling Number, Glutomatic System and NIR analyses. Sieves from 0.5 – 2.0 mm are available. The fine, homogeneous sample is separated from air in a cyclone and collected in a quick release stainless steel container. The cyclone principle makes the mill virtually self-cleaning thus increasing lab throughput, accuracy, and efficiency.

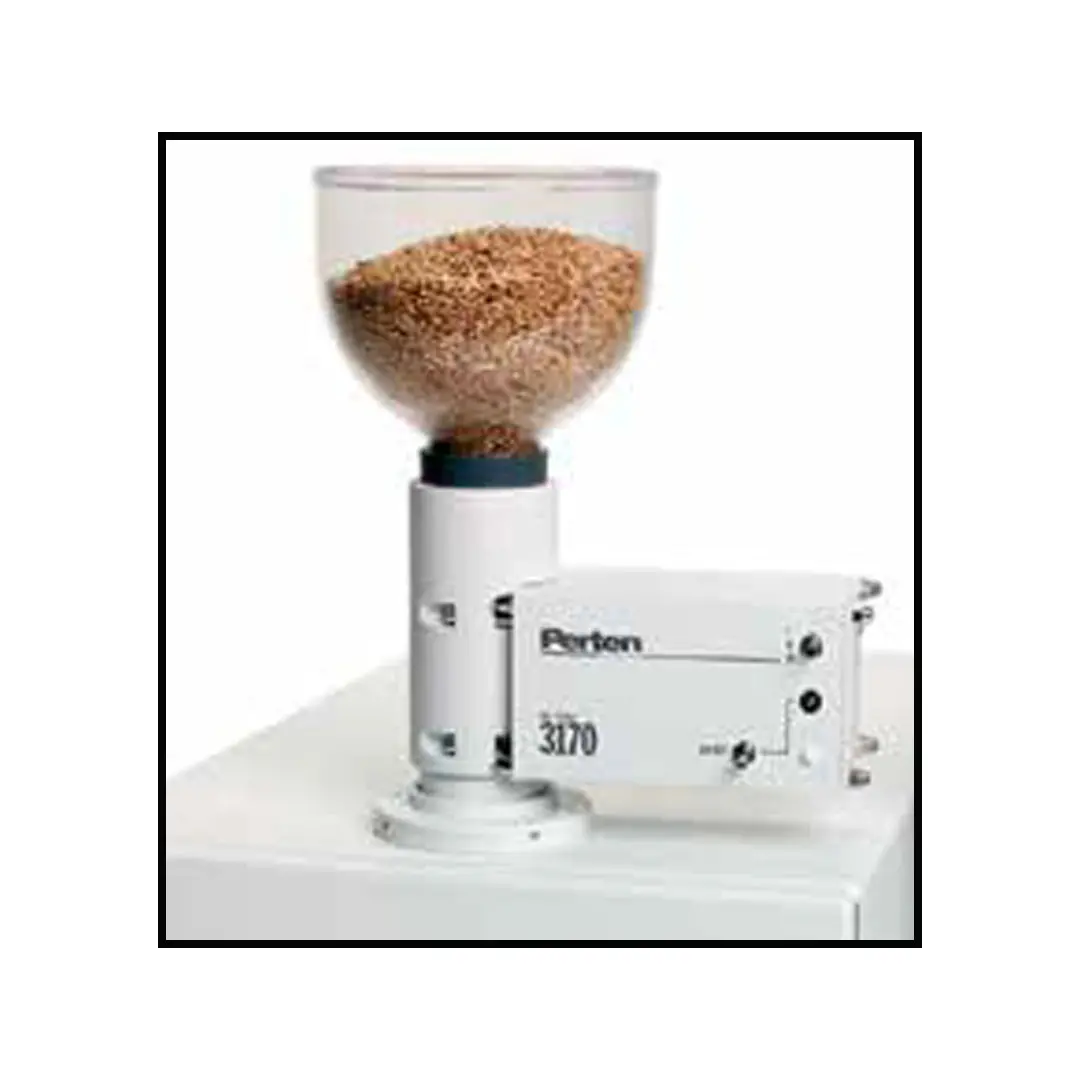

Optional Mill Feeder Accessory: A motor driven rubber paddle Mill Feeder can be added to provide a constant feed rate. This improves grinding of high moisture grain and grain with the hull remaining, e.g. barley, oats and rice. The constant feed rate also improves overall mill performance and reduces motor strain caused by overfeeding.

Power requirement: 115 or 230 V, 50 or 60 Hz (specify on order)
Operation: Belt drive 1:6, 16,800 rpm
Capacity: 300 g in 30-50 seconds depending on moisture content
Dimensions: (HxDxW): 560x510x630 mm
Net weight: 51 kg
