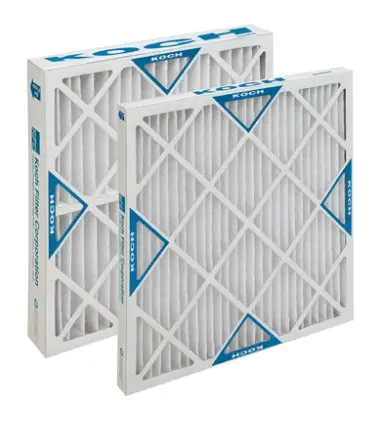

Koch 102-701-001 XL8-1 High-Capacity Multi-Pleat Air Filter – 10″ x 20″ x 1″

Description

Koch Filter 102-701-001 Multi-Pleat XL8 1″ High Capacity, Size 10″x20″x1″, 12 ea/case

Part Number : 102-701-001
Size : 10″ x 20″ x 1″

Multi-Pleat XL8 (MERV 8) – High Capacity
High Capacity – 30% more media.
High Capacity XL8-HC filters are similar in construction to the Standard Capacity but have the added advantage of approximately 30% more media.
The additional media results in extended filter life, making the XL8-HC the ideal filter for use in filtration systems where filter change schedules are predicated on recommended final pressure drop readings.

Specifications:

1. Efficiency: MERV 8 (ASHRAE Standard 52.2-2007)
2. Final Resistance: 1.0″ W.G.
3. Rated Velocity: 300 FPM
4. UL Rating – Class 2 per UL Standard 900
5. Maximum Operating Temperature: 200 degrees Fahrenheit and 93 Celsius
6. Tolerance: Height & Width – +/- 1/8″
7. Tolerance: Depth – +/- 1/16″
