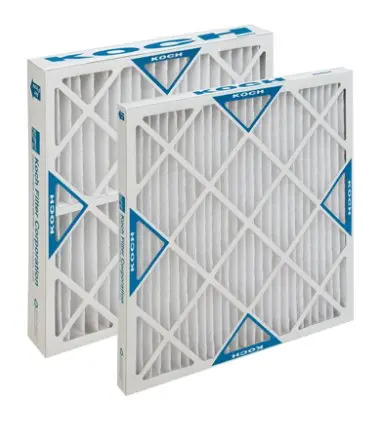

Koch 102-041-001 XL8 Multi-Pleat Air Filter – 12″ x 18″ x 1″ Semi-Standard Size

Description

Koch Filter 102-041-001 Multi-Pleat XL8 1″ Semi-Standard Size 12″ x18″ x1″  , 12 EA/CASE

PN    : 102-041-001
Size  : 12″ x 18″ x 1″

Multi-Pleat XL8
Standard Capacity XL8 filters provide a combination of efficiency, economy, and excellent overall performance.
Standard Capacity XL8 filters are an excellent choice in applications where filter change schedules are based on preventive maintenance schedules

 Multi-Pleat XL-8 (MERV 8) (1” Nominal Depth), Engineering Specification

1.General

• Filter shall be the Multi-Pleat SC XL-8 extended surface pleated air filter manufactured by Koch Filter
• Filters shall be available in standard capacity pleat configuration with a depth of 1” (nominal – 3/4” actual)
• Filters shall be classified UL and cUL per the UL 900 Standard

2.Filter Materials and Construction

• Media shall be 100% The media will not support microbial growth.
• Media laminated to corrosion resistant expanded
• Frame shall be a heavy duty, high strength, moisture resistant paperboard (24 point) double wall construction with an integral die-cut faceguard on the air entering and air leaving sides to prevent movement and protect the media pack and ensure media pack integrity during shipping and actual
• The media pack shall be secured within the frame with an adhesive sealant to ensure leak free

• Media laminated to corrosion resistant expanded
• Frame shall be a heavy duty, high strength, moisture resistant paperboard (24 point) double wall construction with an integral die-cut faceguard on the air entering and air leaving sides to prevent movement and protect the media pack and ensure media pack integrity during shipping and actual
• The media pack shall be secured within the frame with an adhesive sealant to ensure leak free

3.Filter Performance

• Filters shall be a MERV 8 when tested in accordance with the ASHRAE 2-2007 Test Standard
• Filter shall have a low initial pressure drop that shall not exceed 0.26” W.G. at an air flow rate of 300
• Filters shall be rated to withstand a continuous operating temperature of 200”F (93”C)
• Filters shall have a recommended final resistance of 1.0” W.G
