Description
Includes:
*Some applications do not require all items in kit

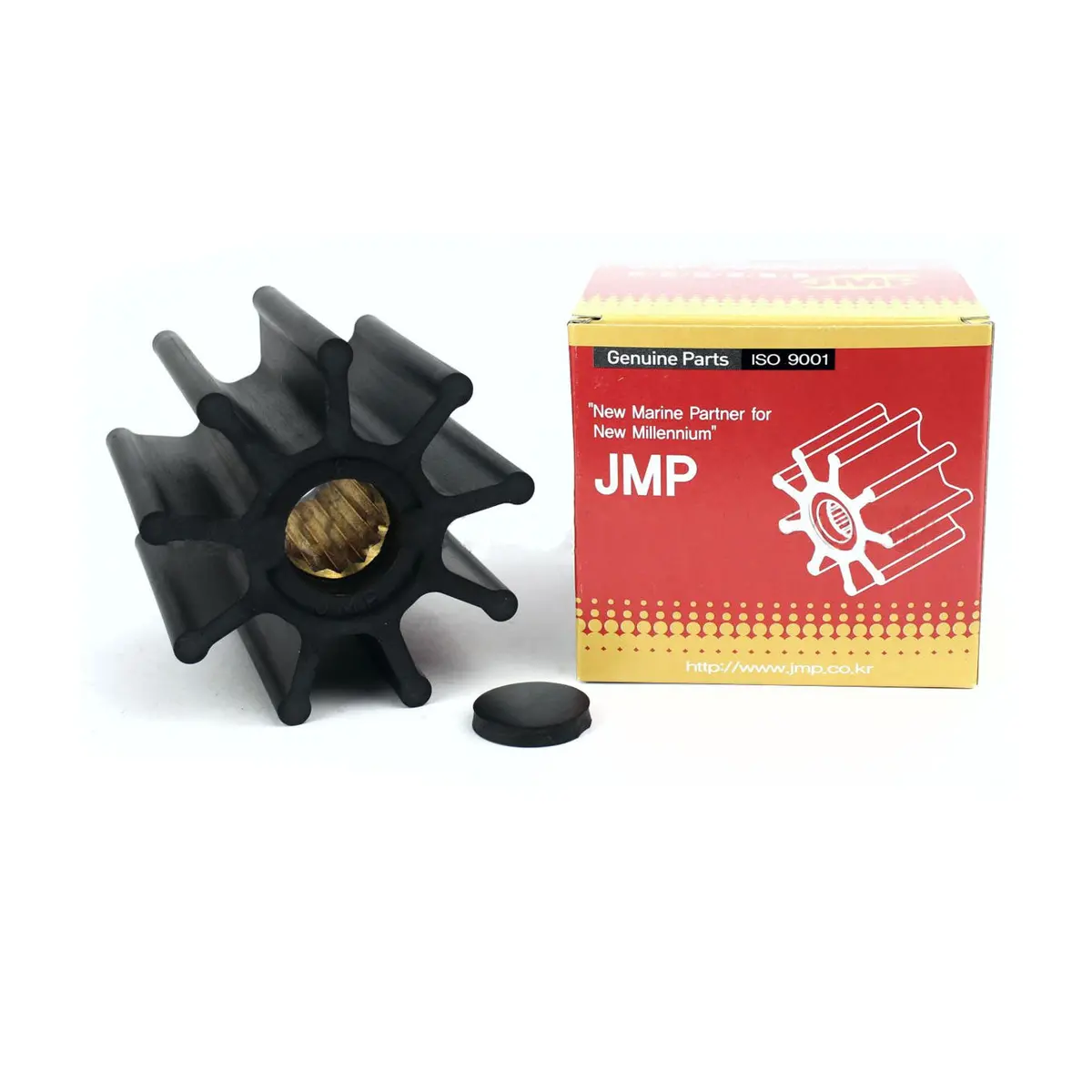

- JMP Marine Flexible Impeller #8200-01
QTY:1 - Gasket (GAK0007)
QTY:1 - O-Ring (ORG0015)
QTY:1
Replacement For:
- Ancor JP50015
- CEF 500245
- Jabsco 6760-0001
- Johnson 09-802B
- Perkins 0460027
- Volvo Penta 842857 / 844683 / 845796
- Yanmar 125613-42762
Also Used in the Following JMP Marine General Multi-Purpose Pump(s):
- JPR-50LP (Multi-Purpose pump handles wide range of liquid transfer, circulation and processing applications such as: bottling systems, cleaning solutions, sewage treatment and marine uses)
- JPR-50UF (Multi-Purpose pump handles wide range of liquid transfer, circulation and processing applications such as: bottling systems, cleaning solutions, sewage treatment and marine uses)
IMPELLER 8200-01 DIMENSIONS & SPECS:
| A (Impeller Dia) | 95mm |
| B (Impeller Width) | 88.8mm |
| C (Shaft Dia) | 25mm |
| No. of Blades | 9 |
| Insert Type | Spline Drive(12) |
| Impeller Weight (approx) |
1.35 LBS |
