Description
Kit Includes:
*Some applications do not require all items in the kit

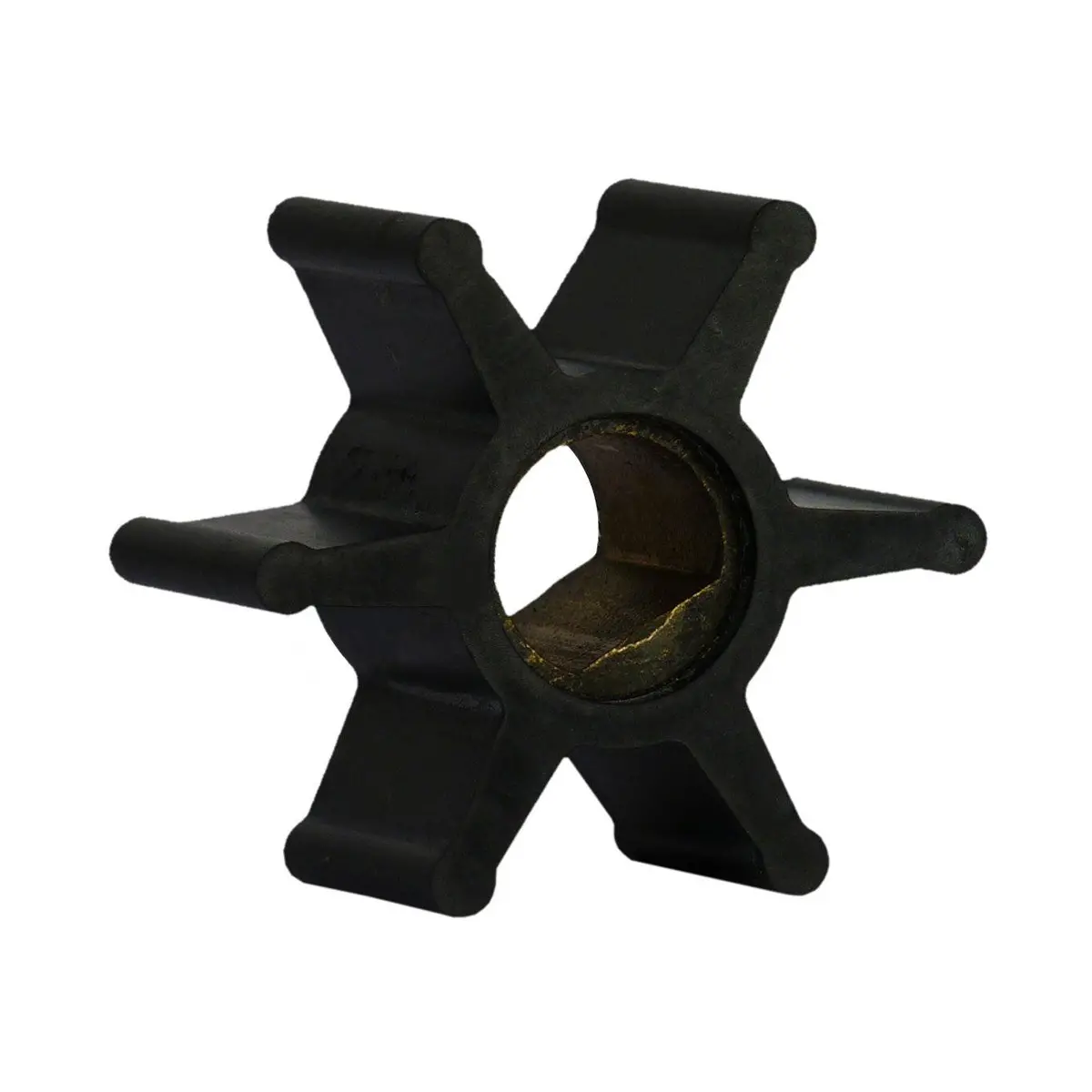

- JMP Marine Flexible Impeller #7050-01
QTY: 1 - Gasket (GAK0051)
QTY: 1 - Gasket (GAK0052)
QTY: 1 - O-Ring (ORG0052)
QTY: 1
Replacement For:
- Jabsco 653-0001
- Johnson 09-810B-1, 09-810B
- Sierra 23-3307
- Westerbeke 34440, 034440
- Yanmar 128990-42200, 128397-42200
Also used in the following JMP Marine Replacement Sea/Raw Water Engine Cooling Pumps:
PLEASE NOTE: The pumps listed below are not internally compatible to genuine as there have been changes made for a better performance value.
- JPR-YM08IH (Yanmar Replacement Sea/Raw Water Engine Cooling Pump)
For Yanmar Engine Models: 2GMF, 3GMF, 2YM, 3YM
Compatible to Genuine: NO
Reason not Compatible: Changes made to Mechanical Seal, Ball Bearing, Shaft, Machined Steel Pulley (Washer, Nut included) - JPR-YM08IH2 (Yanmar Replacement Sea/Raw Water Engine Cooling Pump)
For Yanmar Engine Models: 2GM, 3GM
Compatible to Genuine: NO
Reason not Compatible: Changes made to Mechanical Seal, Ball Bearing, Shaft, Machined Steel Pulley (Washer, Nut included) - JPR-WB08IP (Westerbeke Replacement Gen Set Engine Cooling Pump)
For Westerbeke Engine Models: 4.0/4.4/6.0BCD, 4.4/7.7/8.0/11.0WMD
Compatible to Genuine: NO
Reason not Compatible: Changes made to Wear Plate, Mechanical Seal, Oil Seal, Shaft
Please Note: Only requires O-Ring #ORG0052 of Impeller Kit 7050-01K, the kits gaskets are not required for this pump.
IMPELLER 7050-01 DIMENSIONS & SPECS:
| A (Impeller Dia) | 51mm |
| B (Impeller Width) | 22mm |
| C (Shaft Dia) | 12mm |
| No. of Blades | 6 |
| Insert Type | Slotted Shaft Pin Drive |
| Pin Outside Dia. | 4.9mm |
| Impeller Weight (approx) |
0.15 LBS |
