Description

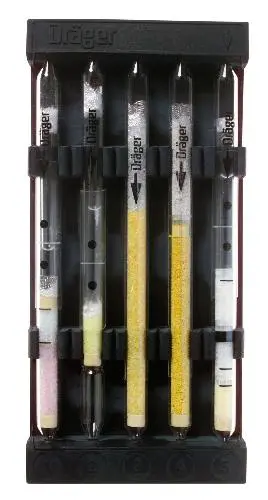

Dräger Simultaneous test set II
PN: 8101736
For direct, half-quantitative, simultaneous on-site measurement of 5 different inorganic fire and decomposition gases. Each 1 Dräger-Tube for measuring – sulfur dioxide, – chlorine, – hydrogen sulfide, – phosphine and – phosgene arranged parallel in a rubber cuff.
| Application Range | ||
| Dräger-Tubes in Simultaneous Test-Set II |
1. Scale Mark |
2. Scale Mark |
| 1. Sulfur Dioxide blue to white 2. Chlorine white to orange 3. Hydrogen Sulfide white to pale brown 4. Phosphine yellow to red 5. Phosgene white to red |
5 ppm |
10 ppm |
| Number of Strokes n | 10 | |
| Time for Measurement | approx. 40 s | |
| Ambient Operating Conditions | ||
| Temperature | 10 to 30 °C | |
| Absolute Humidity | 5 to 15 mg H2O/L |
| Semi-quantitive measurements are also possible outside this range. Water aerosols may result in minus errors |
| Attention |
| The simultaneous Test-Set was developed for the semi-quantitative measurement of fumes and decomposition gases. It is used to estimate and limit risks by obtaining information about health risks or possible intoxication hazards in the area of a fire. The Simultaneous Test-Set cannot be used to determine the risk of explosion. A negative result with the Simultaneous Test-Set does not exclude the presence of other hazardous gases |
